ArchergasSKU: HPARDHW15

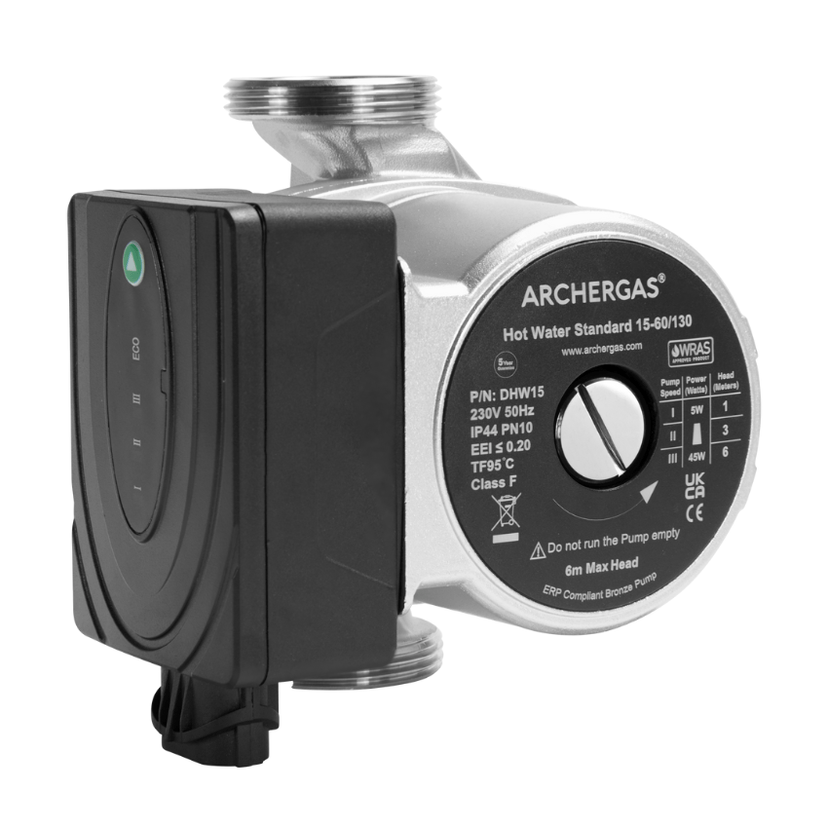

Archergas Hot Water Circulator Pump 15-60/130
(DHW15)Was £139.99
£124.99
Ex.VAT
In stock
Product features:
- Standard 130mm port-to-port profile guarantees immediate compatibility with existing pipework infrastructure
- Three selectable speed parameters enable accurate hydraulic balancing across secondary return circuits
- Heavy-duty construction resists high internal pressures up to 10 bar and sustained fluid temperatures
- ErP compliant 0.093kW motor reduces electrical consumption whilst sustaining a 6-metre maximum head
- IP44-rated outer casing shields vital internal electrical components from ambient moisture and splashing
Sign in to BuyNew customer? Create an account
ArchergasSKU: HPARDHW15
Archergas Hot Water Circulator Pump 15-60/130
(DHW15)Was £139.99
£124.99
Ex.VAT
In stock
Product features:
- Standard 130mm port-to-port profile guarantees immediate compatibility with existing pipework infrastructure
- Three selectable speed parameters enable accurate hydraulic balancing across secondary return circuits
- Heavy-duty construction resists high internal pressures up to 10 bar and sustained fluid temperatures
- ErP compliant 0.093kW motor reduces electrical consumption whilst sustaining a 6-metre maximum head
- IP44-rated outer casing shields vital internal electrical components from ambient moisture and splashing
Sign in to BuyNew customer? Create an account
The Archergas 15-60/130 is a high-performance secondary return bronze pump engineered specifically for domestic hot water circulation. Delivering a maximum head of 6 meters alongside an impressive 57 L/min flow rate it efficiently drives thermal transfer across closed-loop plumbing setups. Constructed from robust stainless steel and cast iron this 230V unit handles system pressures up to 10 bar while providing exceptional resistance to condensation corrosion and continuous elevated temperatures. The standardised 130mm port-to-port dimension and 1 1/2-inch threaded connection ensure it serves as a direct drop-in replacement for numerous legacy circulators including the Grundfos UPS 15-50N.
Fully ErP compliant this compact 2kg circulator features three distinct speed settings allowing installers to manually balance the hydraulic output against specific network resistance. Operating on a minimal 0.093kW power draw it provides a highly efficient solution for maintaining instantaneous hot water at remote outlets. The IP44-rated enclosure safeguards internal electronics against splash damage making it thoroughly suitable for integration within tight boiler cupboards and restricted under-counter plant spaces where moisture is frequently present.
Q: What are the port connection dimensions for installation?
A: It utilises a standard 130mm port-to-port distance and features 1 1/2-inch threaded unions for straightforward pipework integration.
Q: Can this unit replace my existing Grundfos circulator?
A: It functions as a direct mechanical replacement for multiple market models including the Grundfos UPS 15-50N.
Q: Does the pump offer variable hydraulic output control?
A: The unit incorporates three manual speed configurations allowing precise adjustment of the 57 L/min maximum flow rate.
Q: What environmental protections does the casing provide?
A: The external enclosure is IP44 rated offering robust protection against incidental water splashes and surrounding atmospheric condensation.
Fully ErP compliant this compact 2kg circulator features three distinct speed settings allowing installers to manually balance the hydraulic output against specific network resistance. Operating on a minimal 0.093kW power draw it provides a highly efficient solution for maintaining instantaneous hot water at remote outlets. The IP44-rated enclosure safeguards internal electronics against splash damage making it thoroughly suitable for integration within tight boiler cupboards and restricted under-counter plant spaces where moisture is frequently present.
Q: What are the port connection dimensions for installation?
A: It utilises a standard 130mm port-to-port distance and features 1 1/2-inch threaded unions for straightforward pipework integration.
Q: Can this unit replace my existing Grundfos circulator?
A: It functions as a direct mechanical replacement for multiple market models including the Grundfos UPS 15-50N.
Q: Does the pump offer variable hydraulic output control?
A: The unit incorporates three manual speed configurations allowing precise adjustment of the 57 L/min maximum flow rate.
Q: What environmental protections does the casing provide?
A: The external enclosure is IP44 rated offering robust protection against incidental water splashes and surrounding atmospheric condensation.
