Ideal HeatingSKU: HCUIN250I

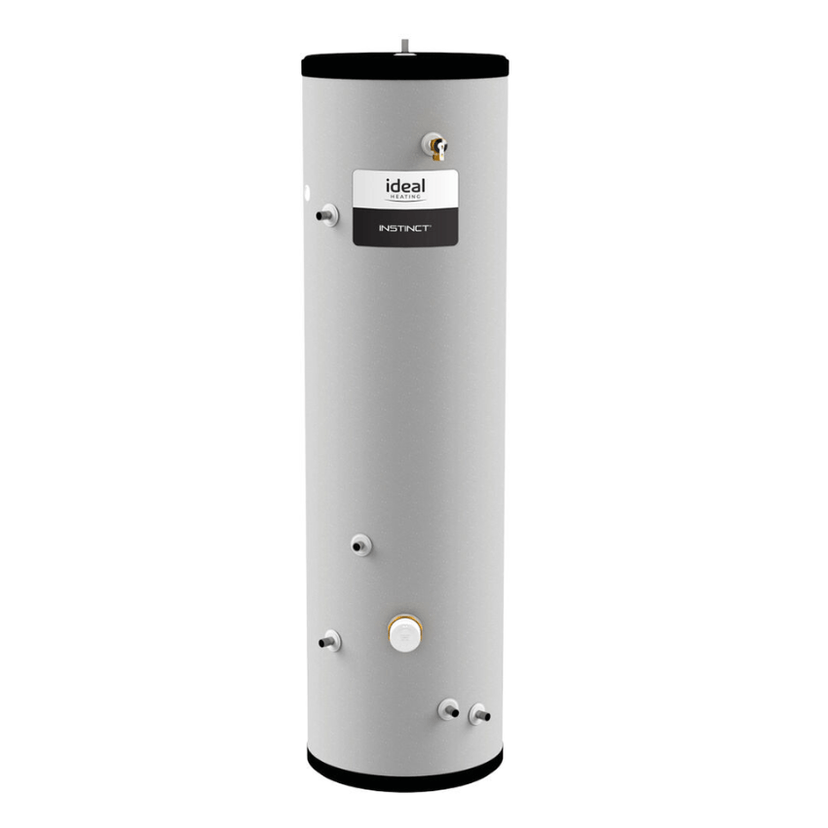

Ideal Instinct Indirect Unvented Cylinder 250L

(IDEINSIN250)
Ideal Instinct Indirect Unvented Cylinder 250L
Sign infor prices
Up to 7 day delivery

Product features:

  • 248L actual capacity constructed from corrosion-resistant duplex stainless steel
  • Corrugated internal heating coil designed for rapid thermal recovery
  • Supplied with a 3kW immersion heater and dual control thermostats
  • Includes a complete unvented safety kit with PRV and T&P valves
  • 40mm thermal insulation ensures minimal standing heat loss

The Ideal Instinct 250L indirect unvented cylinder offers a robust hot water storage solution engineered for properties with multiple bathrooms and high simultaneous draw-off requirements. Manufactured from highly corrosion-resistant duplex stainless steel this 48kg vessel is built to withstand rigorous operating pressures while ensuring extended longevity. The internal corrugated heating coil is specifically designed to maximise surface area contact facilitating rapid heat recovery times when paired with a compatible system boiler. An injected 40mm layer of polyurethane insulation surrounds the 248L core significantly reducing standing heat loss and contributing to its ErP C energy rating.

Measuring 1603mm in height and 530mm in diameter this grey and black unit is supplied with comprehensive safety and installation components to streamline the fitting process. Standard inclusions encompass a cold water inlet PRV combination valve, a pressure and temperature relief valve, a dual control and energy cut-out thermostat alongside an expansion vessel and mounting bracket. The inclusion of factory-fitted compression fittings directly on the cylinder body accelerates pipework connections while ensuring a secure seal for long-term unvented mains pressure operation.

Q: Does this cylinder require a separate expansion vessel?
A: An appropriately sized external expansion vessel and mounting bracket are included as standard components within the package.

Q: What material is used for the primary cylinder construction?
A: The main tank is fabricated from commercial-grade duplex stainless steel to prevent internal corrosion.

Q: What type of insulation is applied to minimise thermal loss?
A: The unit features 40mm of high-density insulation to retain stored water temperatures and improve efficiency.

Q: Are the primary heating controls provided with the unit?
A: Yes a dual thermostat and a 3kW backup immersion heater are supplied for comprehensive temperature management.
