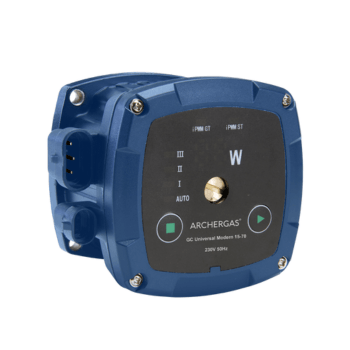

The Archergas® GC Universal Modern produces a maximum head of just over 7 meters and is a pulse width modulating replacement circulator head, as well as being able to fit many integrated circulators it can also be used on standalone circulators like the UPS3, UPM3, UPM4 and the ALPHA2 GO. As with all Archergas circulators, it is fully ERP compliant with an impressive energy efficiency index rating of less than 0.20. The GCM15® is suitable for boilers, radiators, underfloor heating, cooling, solar, recirculation (non-potable) and air source heat pump systems.
Archergas' quality-focused approach to manufacturing and use of high end component materials, this circulator is resistant to condensation, corrosion, high pressure and high temperatures.
It also comes with a 3 year guarantee and can be used as a head replacement for a large number of integrated circulators as well as modern standalones and the ALPHA2 GO.

Specification:

Part Number: GCM15

Maximum Head: 7 Meters

Maximum Flow Rate: 65 Litres Per Minute

Maximum System Pressure: 10 Bar

Energy Efficiency Index Rating (EEI): 0.20

CE/UKCA Approved: Yes

Speed Control: 6 Modes

Protection Class: IP44

Temperature Class: TF95 degrees Celsius

Insulation Class: F

Supplied With: Rubber Washers x2

Material: Cast Iron

Colour: Royal Blue

Weight: 1.4kg
